VRF/VRV Systems

Understanding VRF/VRV Technology and Its Benefits

Variable Refrigerant Flow (VRF) and Variable Refrigerant Volume (VRV) systems represent some of the most sophisticated climate control solutions available today. These advanced systems use refrigerant as both the cooling and heating medium, allowing for precise temperature control across multiple zones within a building. At A-Perfect Climate Inc., we’ve been installing and servicing these systems since their introduction to the North American market, bringing commercial-grade efficiency to residential and light commercial properties throughout Northwest Chicagoland.

The fundamental principle behind VRF/VRV technology involves a single outdoor condensing unit connected to multiple indoor units through refrigerant piping. This configuration allows each zone to operate independently, providing customized comfort levels while maintaining remarkable energy efficiency. Unlike traditional HVAC systems that cycle on and off, VRF systems continuously adjust their output to match the exact heating or cooling demands of each space. This variable capacity operation typically results in energy savings of 30-40% compared to conventional systems, making them an increasingly popular choice for property owners seeking long-term operational cost reductions.

Key Components and System Architecture

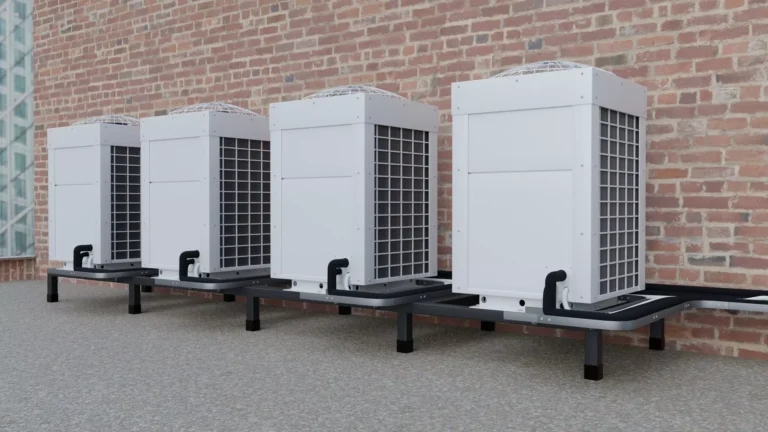

The outdoor unit in a VRF system contains advanced inverter-driven compressors that can modulate their speed from 10% to 100% capacity. This variable speed operation eliminates the energy spikes associated with traditional start-stop cycles while maintaining consistent indoor temperatures within one degree of the setpoint. Our certified technicians understand the intricate balance required when designing these systems, ensuring proper refrigerant pipe sizing, branch selector placement, and indoor unit selection to maximize both comfort and efficiency.

Indoor units come in various configurations including wall-mounted, ceiling cassette, concealed ducted, and floor-standing models. Each indoor unit contains its own electronic expansion valve that precisely controls refrigerant flow based on the specific cooling or heating load in that zone. We typically recommend mixing unit types based on room usage and aesthetic preferences, creating a completely customized solution that seamlessly integrates with your interior design while delivering optimal performance. The flexibility to connect up to 64 indoor units to a single outdoor system makes VRF technology ideal for larger homes, multi-family buildings, and commercial spaces requiring individualized comfort control.

Installation Standards and Best Practices

Since 1987, we’ve maintained strict installation guidelines that exceed manufacturer specifications and industry standards. Proper VRF system installation requires meticulous attention to refrigerant piping design, including correct pipe sizing, proper brazing techniques, and thorough pressure testing. Our team strictly adheres to installation guidelines, outlined in our standards document, which exemplify what customers would not only want, but should expect in their homes. These standards are your assurance of quality, safety and efficiency, which will not only make your home more comfortable for you and your family, but also give peace and comfort in knowing you made an informed decision, based on value.

The installation process begins with comprehensive load calculations for each zone, accounting for factors such as solar gain, occupancy patterns, and equipment heat generation. We then design the refrigerant piping network using specialized software to ensure optimal oil return, minimize pressure drops, and maintain proper refrigerant velocities throughout the system. Our NATE-certified technicians perform nitrogen purging during brazing to prevent oxidation, conduct rigorous leak testing at 600 PSI, and complete thorough system commissioning to verify proper operation across all operating modes.

Advantages for Residential and Light Commercial Applications

VRF systems offer numerous advantages that make them increasingly attractive for both residential and light commercial applications. The ability to simultaneously heat and cool different zones makes these systems perfect for buildings with varying solar exposures or usage patterns. Conference rooms can be cooled while perimeter offices are heated, all from the same system with heat recovery capabilities that transfer excess heat from cooling zones to areas requiring heating.

• Energy efficiency ratings exceeding 30 SEER and 14 HSPF
• Quiet operation with indoor units producing sound levels as low as 19 dB
• Reduced mechanical room requirements due to compact equipment footprint
• Integration capabilities with building automation systems
• Individual zone billing options for multi-tenant applications

We’re in the business of selling comfort, not just heating or cooling, and VRF technology exemplifies this philosophy by providing unprecedented control over indoor environmental conditions. With over 37 years of HVAC experience, owners Richard Vollman and Michael Sitarski have witnessed the evolution of climate control technology firsthand and remain actively involved in evaluating and implementing the latest innovations for our customers throughout Addison, Arlington Heights, Aurora, Bartlett, Carol Stream, Elmhurst, Glen Ellyn, Lombard, Naperville, and Wheaton, IL.
